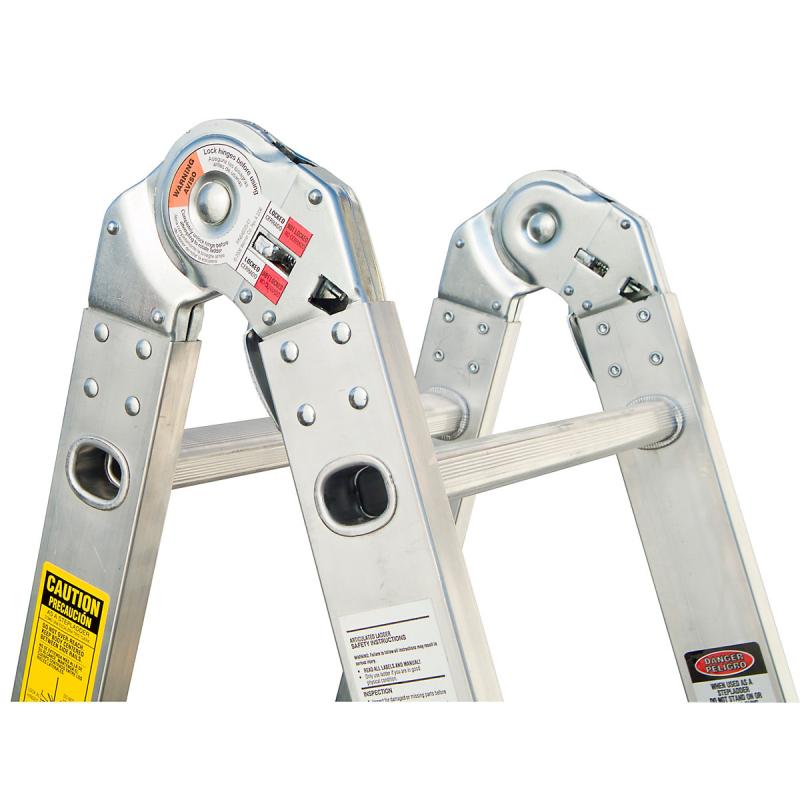

3-position Multi-Lok Hinge allows for 18 positions or applications
Slip-resistant multi-directional rungs
Slip-resistant feet
Comes fully assembled except for bolt-on base
18 positions:1. Double stepladder 2. Stepladder 3. Stairwell ladder 4. Multi-shelf 5. Stand-off ladder 6. Fully extended straight ladder 7. 1/2 & 3/4 length straight ladder 8. Self-supporting scaffold 9. Extended span scaffold 10. Stairwell scaffold
Shippable by ground parcel services
Designed for one or two person jobs

Interested in this item or want more information?
Monday through Friday 7:30 AM – 5:00 PM Closed Sat & Sunday
Phone: 208-375-5534
Email: brian@ihidaho.com

Can't find what you want? Give us a call and we can help you find it.

Details

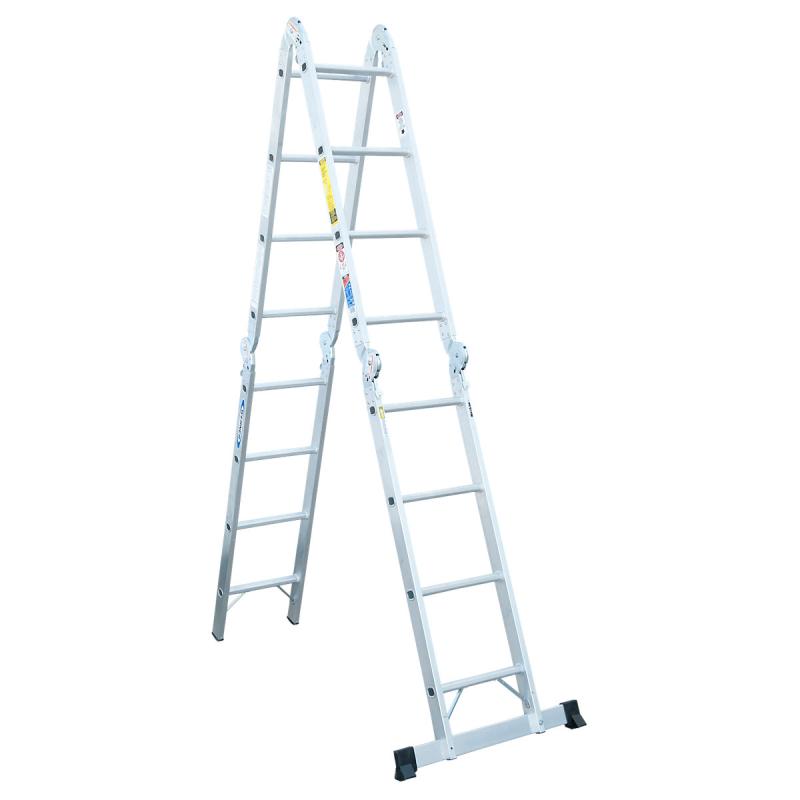

The M1 Series folding aluminum MultiLadder is designed for one or two person jobs. This Type IA ladder with a duty rating of 300 lbs., has a 3-position Multi-Lok® Hinge that allows for 18 positions or applications. Includes slip-resistant, multi-directional rungs and feet.

Performance Overview

Load Capacity	Type	Material	Number of Positions
300 lbs.	Type IA Duty Rating	Aluminum	18

Specifications

Load Capacity: 300 lbs.
Type: Type IA Duty Rating
Material: Aluminum
Stepladder Height: 8'
Extension Height: 16'
Scaffold Height: 4'
Closed Height: 52-5/8"
Number of Positions: 18
Approx. Cu. Ft. Per Unit: 5.2
Approx. Shipping Wt. Lbs.: 39.5

Dimensions

Rails Dimension: 2-1/2"
Flange Deminsion: 1"
Rungs Dimension: 1-1/4"

Additional M1 Series Models

Model No.	Stepladder Height	Extension Height	Stair Height	Scaffold Height	Number of Positions	Approx. Cu. Ft. Per Unit
M1-6-12	6'	12'	3'	40-5/8"	4.0	33.5
M1-8-16	8'	16'	4'	52-5/8"	5.2	39.5

Additional Information

Manufacturer: Werner Co.
