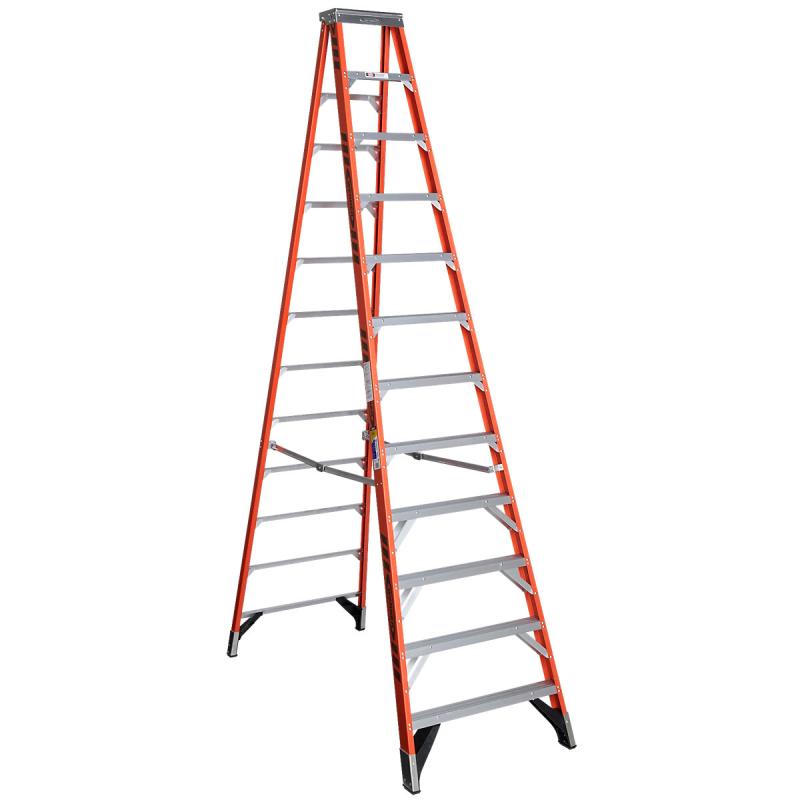

Built to last, the Werner 375-pound duty rated 7400 ladders are rugged and ready for the job. These ladders feature extra heavy duty aluminum HolsterTop®s, internal spreaders and external rail shields for long lasting durability. With the EDGE® bracing system and GLAS*MARK® Violator stripes on the rails, the 7400 series is built to handle the worksite and stands ready for tough jobs. Fiberglass rails are non-conductive for working near electricity.

(click image to enlarge)

Quick Overview

Performance Overview

Style	Size	Reach Height	Load Capacity	Type
Single Sided	12'	16'	375 lbs.	Type IAA Duty Rating

Features include:

Extra heavy duty aluminum HolsterTop® with thick side plates
Back-up plates reinforce all top connectors
Shoulder bolt and lock nut on top hinge; 4 solid aluminum rivets attach top to each front rail
Slip-resistant TRACTION-TRED® steps are double riveted and have extra wide knee braces
Full set of rear horizontals are knee braced and spaced one per foot
Extra heavy duty internal aluminum spreaders
Aluminum external rail shield helps protect against abrasion damage
Glas*Mark® Violator stripes on rails allow ladder to be more visible
Slip-resistant foot pads attached to the EDGE® structure
The EDGE® bracing system helps to decrease damage to rail
Every rivet backed up by metal, metal plates or washers to protect rails
Optional manual pail shelf kit, model no. PK76-9 or automatic closing pail shelf kit model no. 76-2

Interested in this item or want more information?
Monday through Friday 7:30 AM – 5:00 PM Closed Sat & Sunday
Phone: 208-375-5534
Email: 208-375-5534

Can't find what you want? Give us a call and we can help you find it.

Details

Dimensions

Top Dimension: 7-1/4" x 14-7/8"

Front Rails Dimension: 3-1/8"

Front Flange Dimension: 1-3/16"

Rear Rails Dimension: 1-7/8"

Rear Flange Dimension: 1-3/16"

Steps Dimension: 3"

Specifications

Size: 12'

Reach Height: 16'

Max. Standing Height: 9'7"

Load Capacity: 375 lbs.

Type: Type IAA Duty Rating

Performance Rating: 5 Satr

Material: Fiberglass

Approx. Width: 35-1/2"

Approx. Spread: 79-7/8"

With Pail Shelf: No

Spreader Material: Aluminum

Certifications: ANSI A14.5 (2007); OSHA

Approx. Cu. Ft. Per Unit: 14.8

Additional 7400 Series Models:

Model No.	Size	Reach Height	Max. Standing Height	Approx. Width	Approx. Spread	Approx. Cu. Ft. Per Unit
7403	3'	7'	1'	19-3/4"	24-3/8"	2.5
7404	4'	8'	1'11"	21-1/2"	30-1/2"	3.5
7405	5'	9'	2'10"	23-1/4"	36-3/4"	4.6
7406	6'	10'	3'10"	25"	42-7/8"	5.8
7407	7'	11'	4'9"	26-3/4"	49"	7.1
7408	8'	12'	5'9"	28-1/2"	55-1/4"	8.5
7410	10'	14'	7'8"	32"	67-1/2"	11.4
7412	12'	16'	9'7"	35-1/2"	79-7/8"	14.8

Additional Information

Manufacturer: Werner Co.
