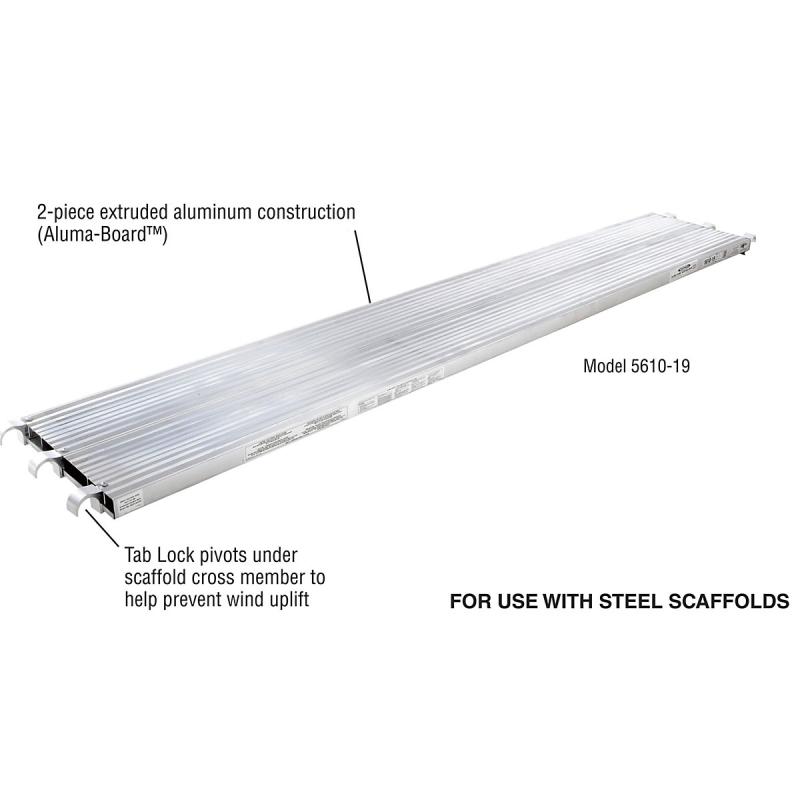

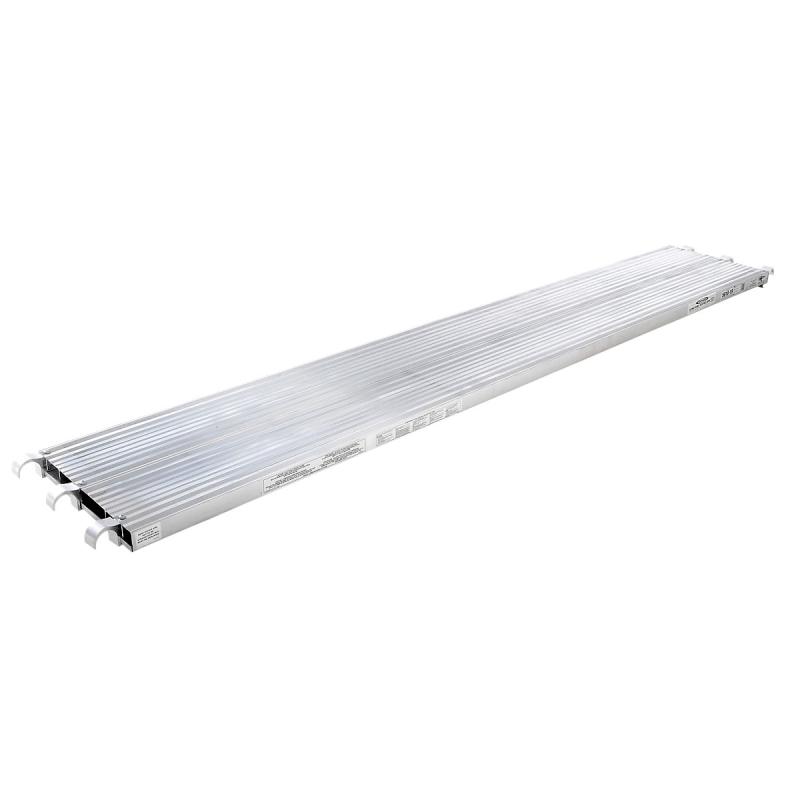

5600 series 2-piece extruded ALUMA-BOARD for use with steel scaffolds. 7' and 8' lengths have a duty rating of 75 pounds/square foot and the 10' length has a duty rating of 50 pounds/square foot. Slip-resistant surface.

(click image to enlarge)

Quick Overview

Features:

For Use With Steel Scaffolds
19-1/16" wide, 10' long extruded aluminum plank

Interested in this item or want more information?
Monday through Friday 7:30 AM – 5:00 PM Closed Sat & Sunday
Phone: 208-375-5534
Email: brian@ihidaho.com

Can't find what you want? Give us a call and we can help you find it.

Details

Specifications

Side Rail Length: 10'
Approx. Width: 19-1/16"
Duty Rating/Sq Ft: 50 lbs.
Material: Aluminum
Certifications: ANSI A10.8 (2001); OSHA
Approx. Cu. Ft. Per Unit: 4.11
Approx. Shipping Wt. Lbs.: 41

Dimensions

Approx. Width: 19-1/16"
Side Rail Depth: 2"

Additional MT Series Models

Model No.	Side Rail Length	Duty Rating/Sq Ft	Approx. Cu. Ft. Per Unit	Approx. Shipping Wt. Lbs.
5607-19	7'	75 lbs.	2.91	30.0
5608-19	8'	75 lbs.	3.31	34.0
5610-19	10'	50 lbs.	4.11	41

Additional Information

Manufacturer: Werner Co.
