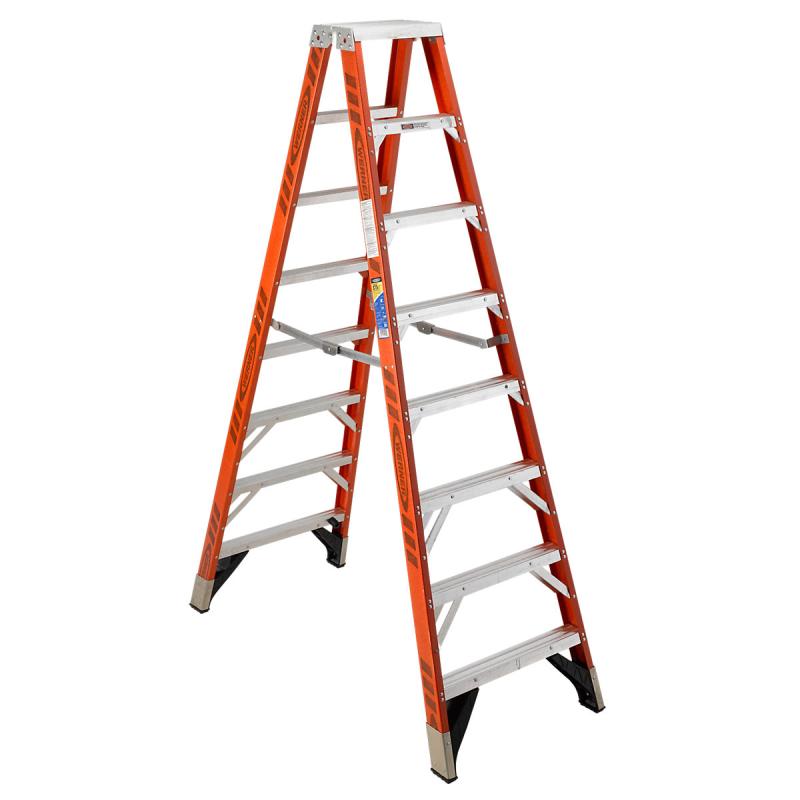

Werner T7400 twin stepladders feature a duty rating of 375 pounds per side of the ladder. Designed for one or two-person jobs, the T7400 ladders have heavy gauge aluminum tops and feature heavy duty internal spreaders to resist damage around the worksite or in transit. The GLAS*MARK Violater stripes on the rails make the ladder more visible and the EDGE bracing system and external rail shields add to the long lasting durability of these ladders. Fiberglass rails are non-conductive for working near electricity.

(click image to enlarge)

Quick Overview

Performance Overview

Style	Size	Reach Height	Load Capacity	Type
Twin	8'	12'	375 lbs.	Type IAA Duty Rating

Features include:

Heavy gauge aluminum extruded top with thick side plates
Back-up aluminum plates reinforce all top connectors
Shoulder bolt and lock nut on top hinge; 4 solid aluminum rivets attach top to each rail
Slip-resistant TRACTION-TRED® steps are double riveted and knee-braced
Extra heavy duty internal aluminum spreaders
Rubber step bumpers to resist damage
The EDGE bracing system helps to decrease damage to rail
Glas*Mark Violator stripes on rails allow ladder to be more visible
Aluminum external rail shield helps protect against abrasion damage
Shoe pads riveted to the EDGE structure
Every rivet backed up by metal, metal plates or washer to protect rails
Design for one or two-person jobs
Maximum load per side, including person and materials, shall not exceed duty rating of ladder

Interested in this item or want more information?
Monday through Friday 7:30 AM – 5:00 PM Closed Sat & Sunday
Phone: 208-375-5534
Email: 208-375-5534

Can't find what you want? Give us a call and we can help you find it.

Details

Dimensions

Top Dimension: 8-1/4" x 14-1/2"

Front Rails Dimension: 3-1/8"

Front Flange Dimension: 1-3/16"

Rear Rails Dimension: 3-1/8"

Rear Flange Dimension: 1-3/16"

Steps Dimension: 3"

Specifications

Size: 8'

Reach Height: 12'

Max. Standing Height: 5'9"

Load Capacity: 375 lbs.

Type: Type IAA Duty Rating

Performance Rating:

Material: Fiberglass

Approx. Width: 28-1/2"

Approx. Spread: 64-1/8"

With Pail Shelf: No

Spreader Material: Aluminum

Certifications: ANSI A14.5 (2007); OSHA

Approx. Cu. Ft. Per Unit: 10.5

Approx. Shipping Wt. Lbs.: 40.5

Additional 7400 Series Models:

Model No.	Size	Reach Height	Reach Height	Reach Height	Max. Standing Height
T7404	4'	1'11"	1'11"	375 lbs.	Type IAA Duty Rating
T7405	5'	2'10"	2'10"	375 lbs.	Type IAA Duty Rating
T7406	6'	3'10"	3'10"	375 lbs.	Type IAA Duty Rating
T7408	8'	5'9"	5'9"	375 lbs.	Type IAA Duty Rating
T7410	10'	7'8"	7'8"	375 lbs.	Type IAA Duty Rating
T7412	12'	9'7"	9'7"	375 lbs.	Type IAA Duty Rating
T7414	14'	11'6"	11'6"	300 lbs.	Type IA Duty Rating

Additional Information

Manufacturer: Werner Co.
