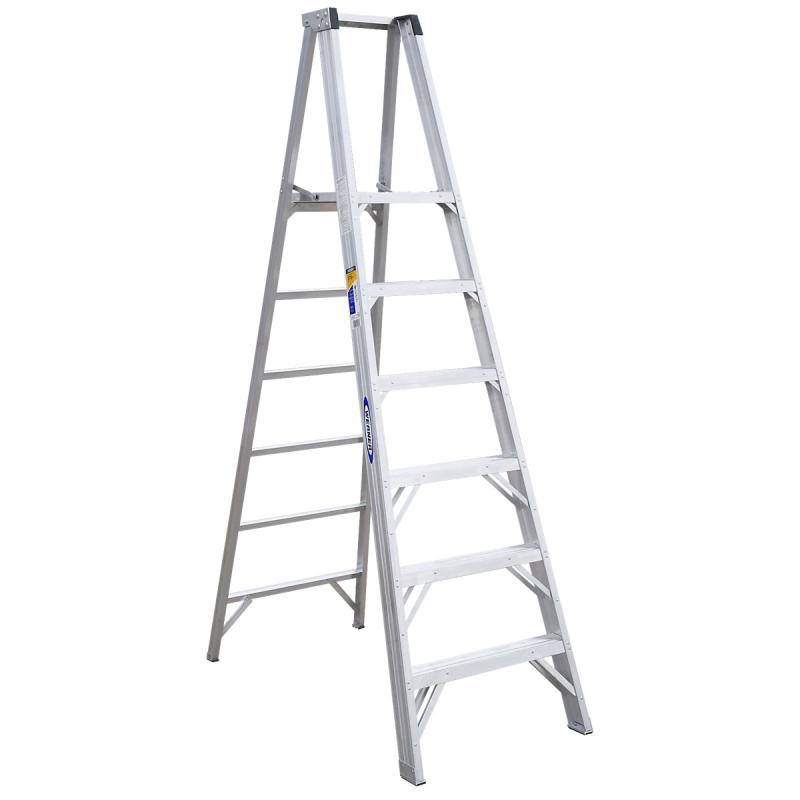

The P400 series aluminum platform ladders have a duty rating of 375 pounds and feature a safety guard rail to encourage proper use. The large platform provides a secure and comfortable work area, and the slip-resistant TRACTION-TRED steps are double riveted and knee braced. A full set of rear horizontals are spaced one foot apart. The 10', 12' and 14' models have a duty rating of 300 pounds. These ladders are lightweight and easy to transport.

(click image to enlarge)

Quick Overview

Performance Overview

Style	Size	Reach Height	Load Capacity	Type
Twin	10'	14'	375 lbs.	Type IAA Duty Rating

Features include:

Safety guard rail
Large, platform provides secure and comfortable work area
Shoulder bolt and lock nut on top hinge; 4 solid aluminum rivets attach top to each rail
Slip-resistant TRACTION-TRED® steps are double riveted and knee-braced
Full set of rear horizontals are spaced one per foot
Heavy duty aluminum foot bracket with slip-resistant foot pad
Internal spreaders on 8’ and above

Interested in this item or want more information?
Monday through Friday 7:30 AM – 5:00 PM Closed Sat & Sunday
Phone: 208-375-5534
Email: 208-375-5534

Can't find what you want? Give us a call and we can help you find it.

Details

Dimensions

Front Rails Dimension: 3-1/8"

Front Flange Dimension: 1-1/8"

Rear Rails Dimension: 1-3/4"

Rear Flange Dimension: 1"

Steps Dimension: 3"

Specifications

Size: 6'

Height (Size) to Platform: 6'

Rail Length: 8'

Reach Height: 12'

Max. Standing Height: 5'9"

Load Capacity: 375 lbs.

Type: Type IAA Duty Rating

Performance Rating: 5 Star

Material: Aluminum

Approx. Width: 28-1/4"

Approx. Spread: 54-3/4"

With Pail Shelf: No

Certifications: ANSI A14.2 (2007); OSHA

Approx. Cu. Ft. Per Unit: 10.1

Approx. Shipping Wt. Lbs.: 33.5

Additional 7400 Series Models:

Model No.	Size	Height (Size) to Platform	Rail Length	Reach Height	Max. Standing Height	Load Capacity
P404	4'	Height (Size) to Platform	6'	10'	3'10"	375 lbs.
P406	6'	8'	12'	5'9"	375 lbs.
P408	8'	4'	10'	14'	7'8"	375 lbs.
P410	10'	6'	12'	16'	9'7"	300 lbs.
P412	12'	8'	14'	18'	11'6"	300 lbs.

Additional Information

Manufacturer: Werner Co.
