Werner P7400 ladders are rated at 375 pounds and maintain a full set of horizontals on the rear sections. The large work platform provides a secure and comfortable work area while the EDGE® bracing system and external rails shields add to the durability of the product. The safety guard rail at the top of the ladder encourages proper ladder use. Fiberglass rails are non-conductive for working near electricity.

(click image to enlarge)

Quick Overview

Performance Overview

Style	Size	Reach Height	Load Capacity	Type
Platform	6'	12'	375 lbs.	Type IAA Duty Rating

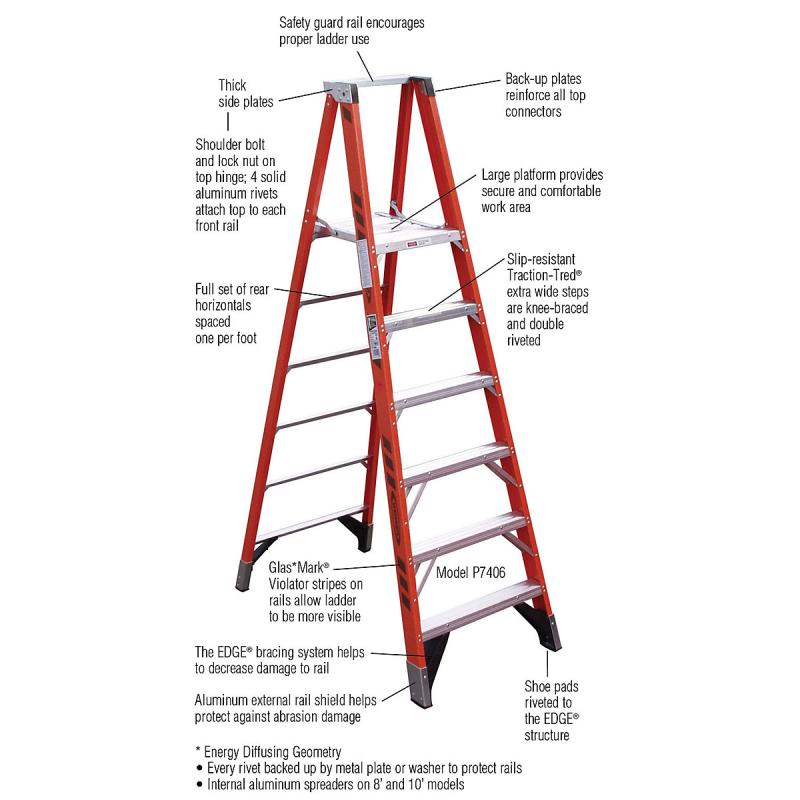

Features include:

Safety guard rail encourages proper ladder use
Back-up plates reinforce all topconnectors
Large platform provides secure and comfortable work area
Shoulder bolt and lock nut on top hinge; 4 solid aluminum rivets attach top to each front rail
Full set of rear horizontals spaced one per foot
Slip-resistant TRACTION-TRED® extra wide steps are knee-braced and double riveted
The EDGE® bracing system helps to decrease damage to rail
Glas*Mark® Violator stripes on rails allow ladder to be more visible
Aluminum external rail shield helps protect against abrasion damage
Slip-resistant foot pads attached to the EDGE® structure
Every rivet backed up by metal, metal plates or washers to protect rails

Interested in this item or want more information?
Monday through Friday 7:30 AM – 5:00 PM Closed Sat & Sunday
Phone: 208-375-5534
Email: 208-375-5534

Can't find what you want? Give us a call and we can help you find it.

Details

Dimensions

Front Rails Dimension: 3-1/8"

Front Flange Dimension: 1-3/16"

Rear Rails Dimension: 1-7/8"

Rear Flange Dimension: 1-3/16"

Steps Dimension: 3"

Platform Depth: 14-5/8" x 15"

Platform Width: 14-5/8" x 15"

Specifications

Size: 6'

Height (Size) to Platform: 6'

Rail Length: 8'

Reach Height: 12'

Max. Standing Height: 5'9"

Load Capacity: 375 lbs.

Type: Type IAA Duty Rating

Performance Rating: 5 Star

Material: Fiberglass

Approx. Width: 30-1/2"

Approx. Spread: 54-3/8"

With Pail Shelf: No

Certifications: ANSI A14.5 (2007); OSHA

Approx. Cu. Ft. Per Unit: 9.1

Approx. Shipping Wt. Lbs.: 34

Additional 400 Series Models:

Model No.	Size	Reach Height	Max. Standing Height	Load Capacity	Type	Load Capacity
P7403	3'	3'	5'	9'	2'10"	375 lbs.
P7404	4'	4'	6'	10'	3'10"	375 lbs.
P7406	6'	6'	8'	12'	5'9"	375 lbs.
P7408	8'	8'	10'	14'	7'8"	375 lbs.
P7410	10'	10'	12'	16'	9'7"	300 lbs.
P7412	12'	12'	14'	18'	11'6"	300 lbs.

Additional Information

Manufacturer: Werner Co.
