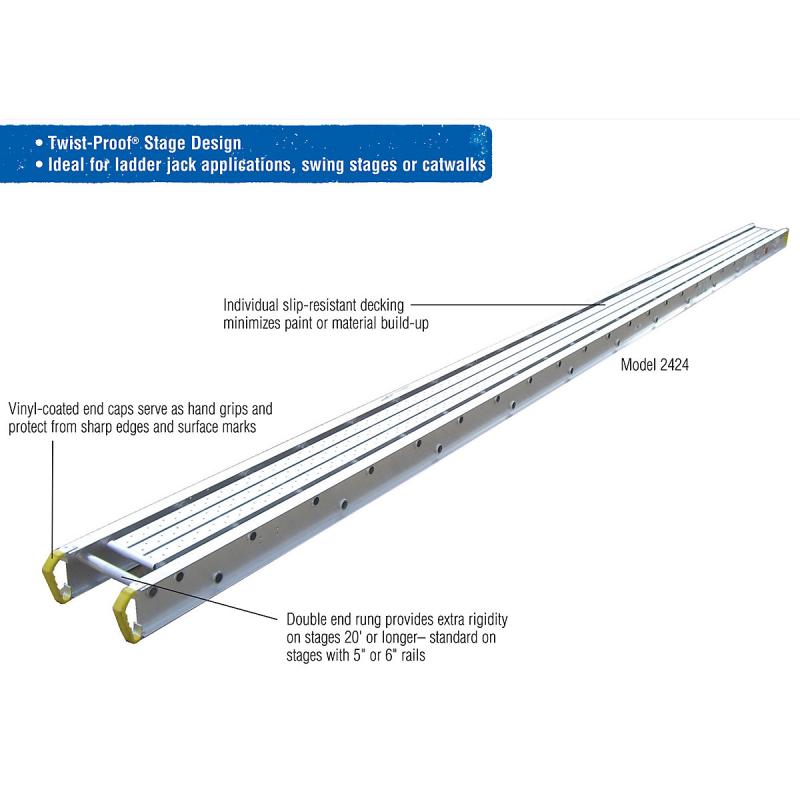

The 2500 stage platforms offer a 500 pound duty rating and allows for 2 people on one plank. The TWIST-PROOF® design is ideal for ladder jack applications, swing stages or catwalks. Each stage is 20" wide. (STILL IDEAL FOR LADDER JACK APPLICATIONS….etc.?)

(click image to enlarge)

Quick Overview

Features include:

Individual slip-resistant decking minimizes paint or material build-up
Vinyl-coated end caps serve as hand grips and protect from sharp edges and surface marks
2-Person - 500 lbs. Rated

Interested in this item or want more information?
Monday through Friday 7:30 AM – 5:00 PM Closed Sat & Sunday
Phone: 208-375-5534
Email: 208-375-5534

Can't find what you want? Give us a call and we can help you find it.

Details

Dimensions

Side Rail Depth: 4"

Side Rail Flange: 1-3/8"

Specifications

Side Rail Length: 12'

Platform Width: 20"

Load Capacity: 500 lbs.

Certifications: ANSI A10.8 (2001); OSHA

Approx. Cu. Ft. Per Unit: 6.61

Approx. Shipping Wt. Lbs.: 48

Additional 2500 Series Models:

Model No.	Side Rail Length	Approx. Cu. Ft. Per Unit	Approx. Shipping Wt. Lbs.
2508	8'	4.41	33
2512	12'	6.61	48
2516	16'	11.22	70
2520	20'	16.7	102
2524	24'	20.04	121
2528	28'	23.38	157
2532	32'	26.72	179

Additional Information

Manufacturer: Werner Co.
