The 2700 stage platforms offer a 500 pound duty rating and allows for 2 people on one plank. The TWIST-PROOF design is ideal for ladder jack applications, swing stages or catwalks. Each stage is 28" wide.

(click image to enlarge)

Quick Overview

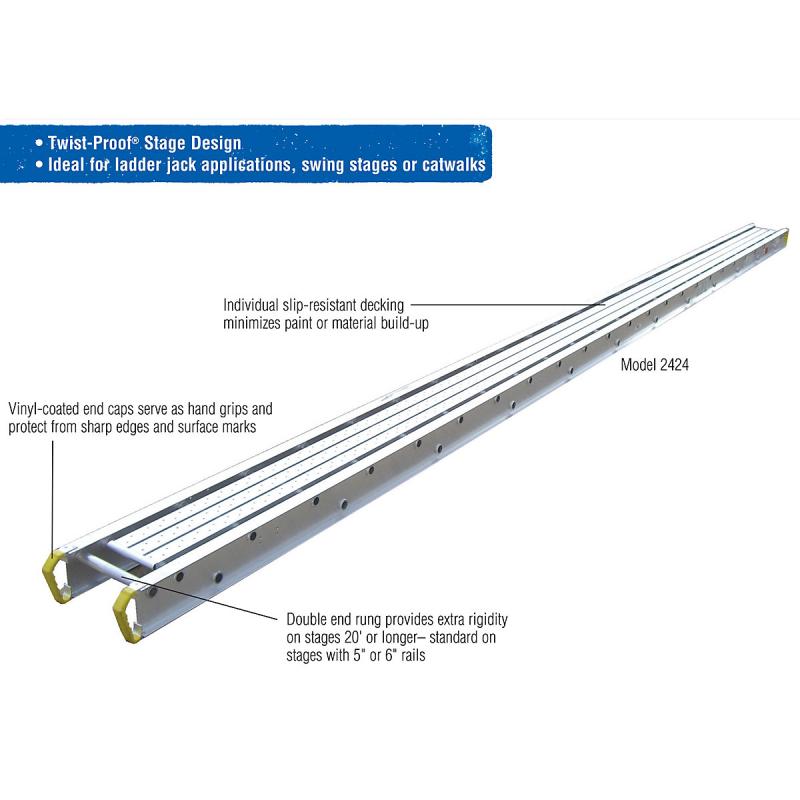

Features include:

Individual slip-resistant decking minimizes paint or material build-up
Vinyl-coated end caps serve as hand grips and protect from sharp edges and surface marks
Double end rung provides extra rigidity on stages 20' or longer
2-Person - 500 lbs. Rated

Interested in this item or want more information?
Monday through Friday 7:30 AM – 5:00 PM Closed Sat & Sunday
Phone: 208-375-5534
Email: 208-375-5534

Can't find what you want? Give us a call and we can help you find it.

Details

Dimensions

Side Rail Depth: 6"

Side Rail Flange: 1-3/8"

Specifications

Side Rail Length: 20'

Platform Width: 28"

Load Capacity: 500 lbs.

Certifications: ANSI A10.8 (2001); OSHA

Approx. Cu. Ft. Per Unit: 23.3

Approx. Shipping Wt. Lbs.: 124

Additional 2700 Series Models:

Model No.	Side Rail Length	Approx. Cu. Ft. Per Unit	Approx. Shipping Wt. Lbs.
2708	8'	6.15	41
2712	12'	9.23	60
2716	16'	15.66	87
2720	20'	23.3	124
2724	24'	27.96	147
2728	28'	32.62	187
2732	32'	37.28	213

Additional Information

Manufacturer: Werner Co.
