The S7900 series is a Fiberglass Tappered Sectional Ladder with a base, middle and top section that can be combined to reach to reach 12', 16', or 20' lengths. Durable rail shields and shoe brackets protects the rail from damage. TRACTION-TRED round rungs are slip resistant, and the exclusive ALFLO rung joint means TWIST-PROOF® performance every time. These ladders are made of non-conductive fiberglass rails and have a duty rating of 375 pounds

(click image to enlarge)

Quick Overview

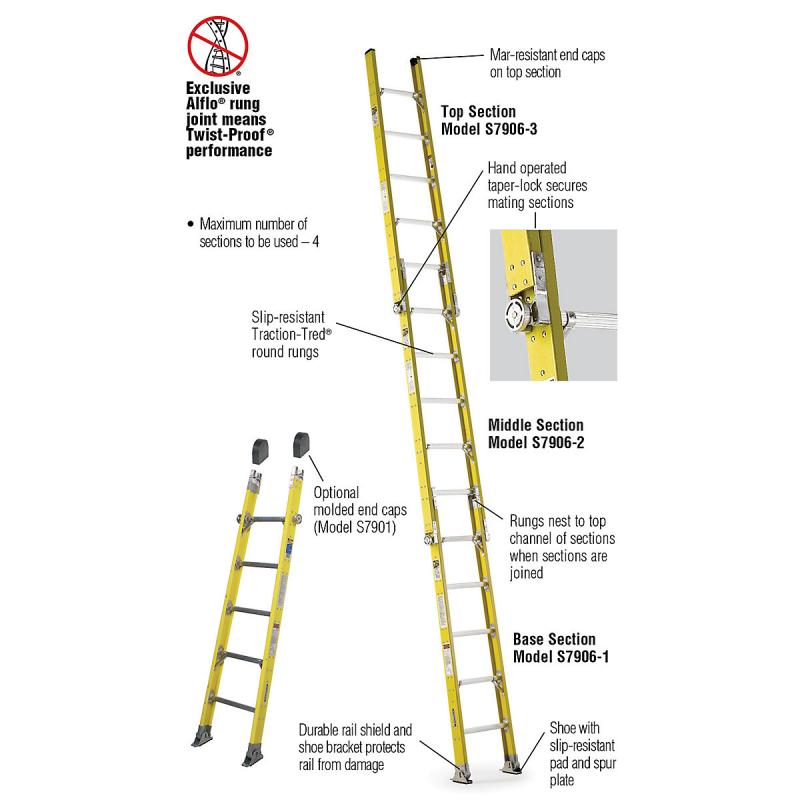

Features include:

6' Tapered sectional ladders can assembled with additional sections to reach 12', 16', or 20' lengths

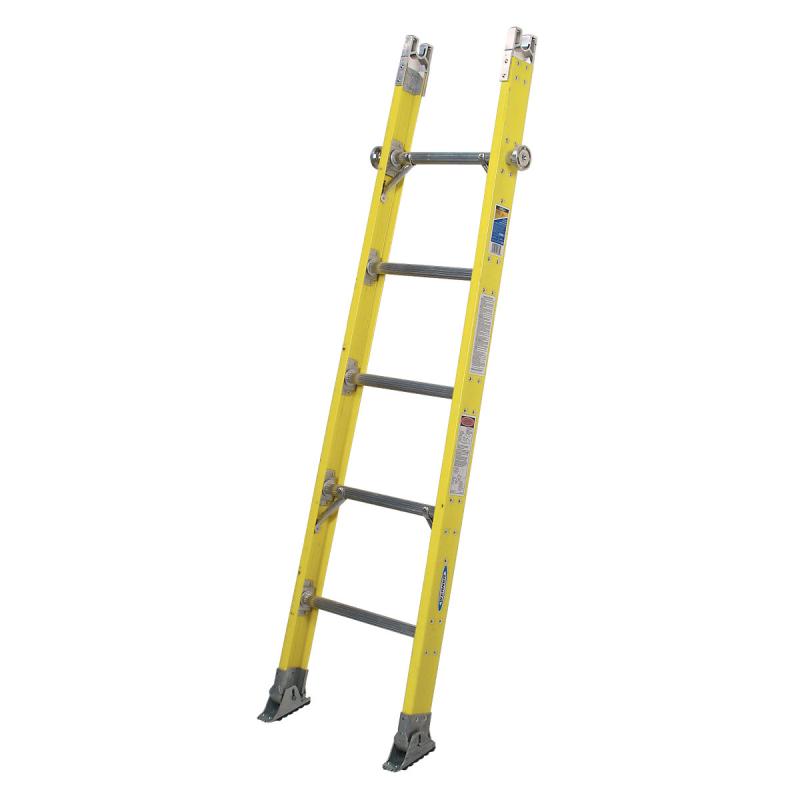

Base section of the system can be used alone or with model S7906-2 and/or model S7906-3
Durable rail shield and shoe bracket protects rail from damage
Optional molded end caps (Model S7901)
Exclusive ALFLO rung joint means TWIST-PROOF performance
Hand operated taper-lock secures mating sections
Slip-resistant TRACTION-TRED round rungs nest to top channel of sections when sections are joined
Shoe with slip-resistant pad and spur plate

Interested in this item or want more information?
Monday through Friday 7:30 AM – 5:00 PM Closed Sat & Sunday
Phone: 208-375-5534
Email: 208-375-5534

Can't find what you want? Give us a call and we can help you find it.

Details

Dimensions

Rails Dimension: 3-5/16"

Flange Dimension: 1-3/16"

Rung Dimension: 1-1/4"

Base Width: 19-3/4" outside shoes

Specifications

Load Capacity: 375 lbs.

Type: Type IAA Duty Rating

Performance Rating: 5 Star

Material: Fiberglass

Rung Type: Round

Foot Material: Slip-resistant pad

Certifications: ANSI A14.5 (2007); OSHA

Approx. Cu. Ft. Per Unit: 2.3

Approx. Shipping Wt. Lbs.: 17

Additional S7900 Series Models:

Model No.	Approx. Cu. Ft. Per Unit	Approx. Shipping Wt. Lbs.
S7906-1	2.3	17
S7906-2	3.5	15.5
S7906-3	3.4	13

Additional Information

Manufacturer: Werner Co.
